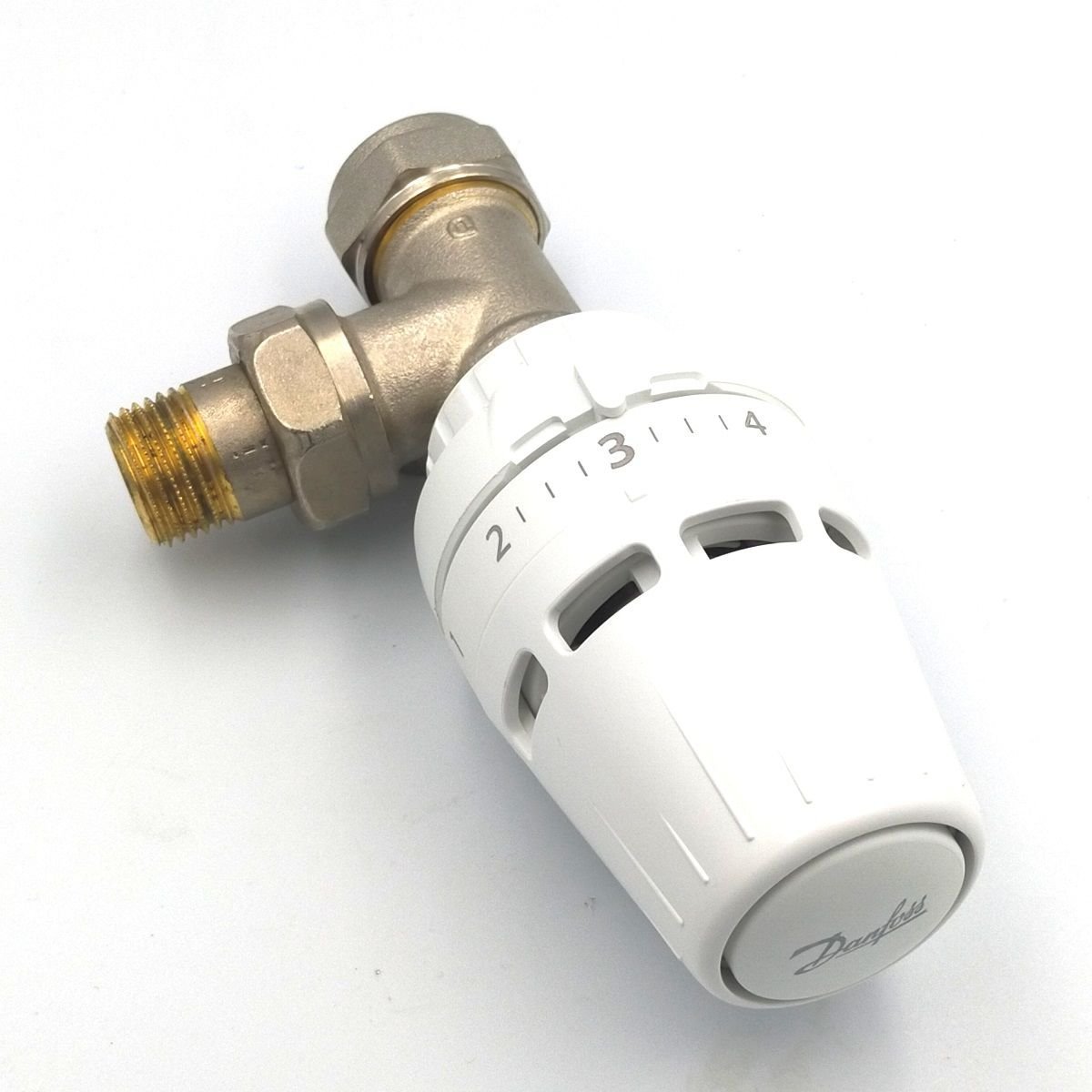

Regus Corner Thermostatic Radiator Valve (16x2 Pex)

Product name Danfoss REGUS New Generation Angle Liquid Sensor Thermostatic Radiator Valve

Thermostat Code 015G3690

Valve Body Code 013G6804

Link RA

Features: Freeze protection, temperature upper and lower limiting and locking

Warranty 5 years Danfoss Türkiye

Upper and Lower Temperature 8°C – 28°C

Connection Dimensions 1/2" - 1/2"

Response time 22 minutes

Color White / RAL9016

In order for the Danfoss thermostatic radiator valve to work correctly, it must be installed parallel to the floor (the Danfoss lettering on the thermostat must face forward or sideways, never towards the ceiling). If the installation is not done in this way, opening and closing will not occur within the given response time or the targeted saving rates may not be achieved.
