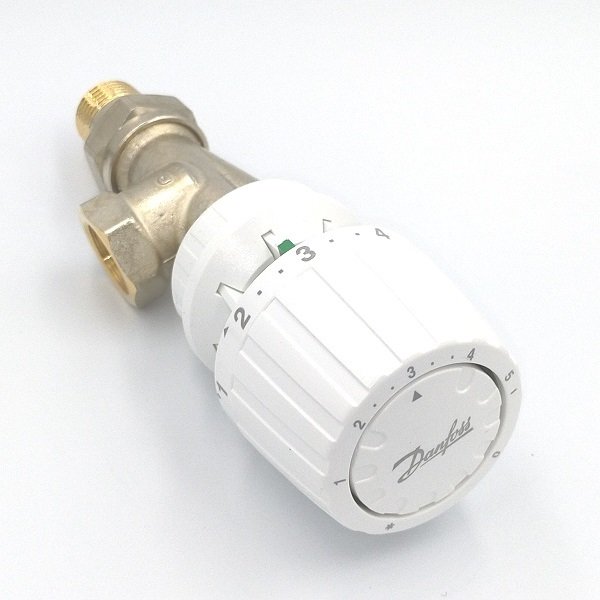

Horizontal Angle Thermostatic Radiator Valve with Gas Sensor

Product name Danfoss Horizontal Angle Thermostatic Radiator Valve with Gas Sensor

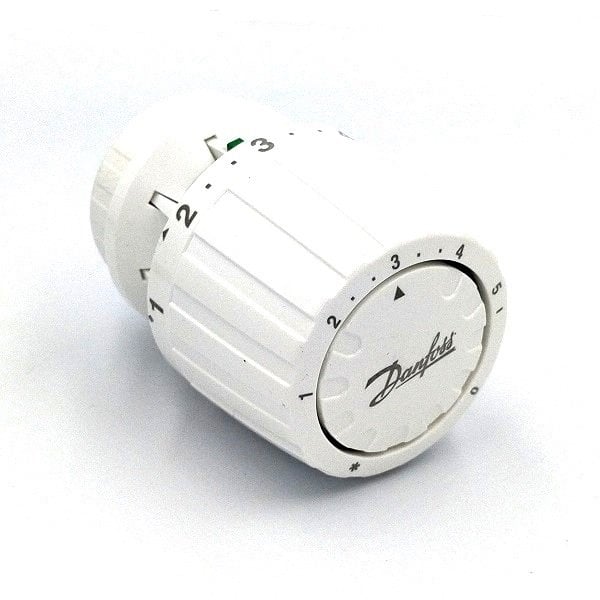

Type RA2000 Thermostatic Heads

Thermostat Code 013G2944

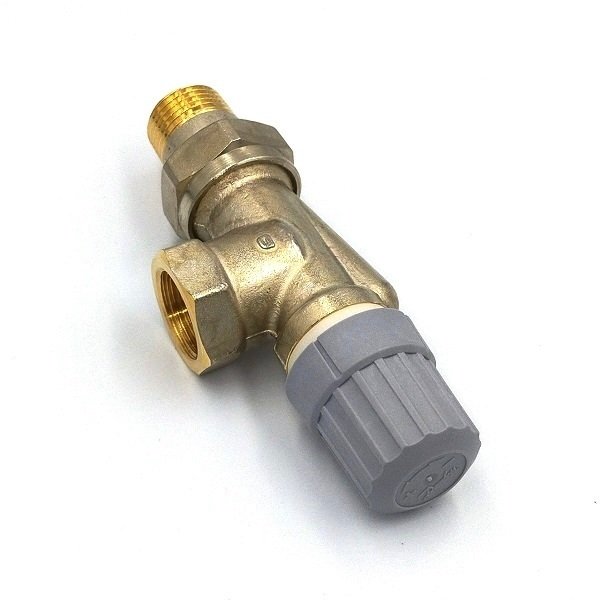

Valve Body Code 013G0143

Connection RA Click pass

Features: Freeze protection, temperature upper and lower limiting and locking

Warranty 5 years Danfoss Türkiye

Upper and Lower Temperature 0°C – 26°C

Connection Dimensions 1/2" - 1/2"

Response time 13 minutes

Color White / RAL9016

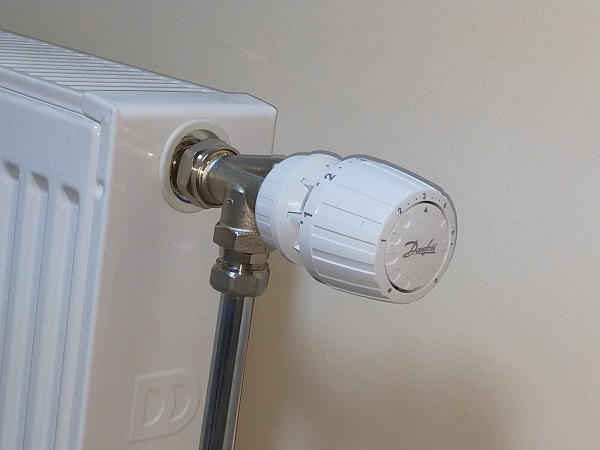

In order for the Danfoss thermostatic radiator valve with gas sensor to work correctly, it must be installed parallel to the floor (the Danfoss lettering on the thermostat must face forward or sideways, never towards the ceiling). If the installation is not done in this way, opening and closing will not occur within the given response time or the targeted saving rates may not be achieved.
