Köşe Termostatik Radyatör Vanası (Pex)

Product name Danfoss Corner Thermostatic Radiator Valve with Liquid Sensor (Pex)

Thermostat Code 013G5016

Valve Body Code 013G6804

Connection RA Click pass

Features: Freeze protection, temperature upper and lower limiting and locking

Warranty 5 years Danfoss Türkiye

Upper and Lower Temperature 8°C – 28°C

Connection Dimensions 1/2" - (16x2 Pex)

Response time 20 minutes

Color White / RAL9016

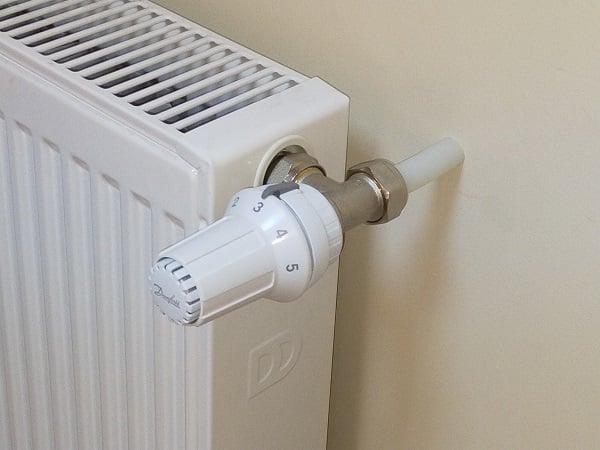

In order for the Danfoss thermostatic radiator valve to work correctly, it must be installed parallel to the floor (the Danfoss lettering on the thermostat must face forward or sideways, never towards the ceiling). If the installation is not done in this way, opening and closing will not occur within the given response time or the targeted saving rates may not be achieved.
