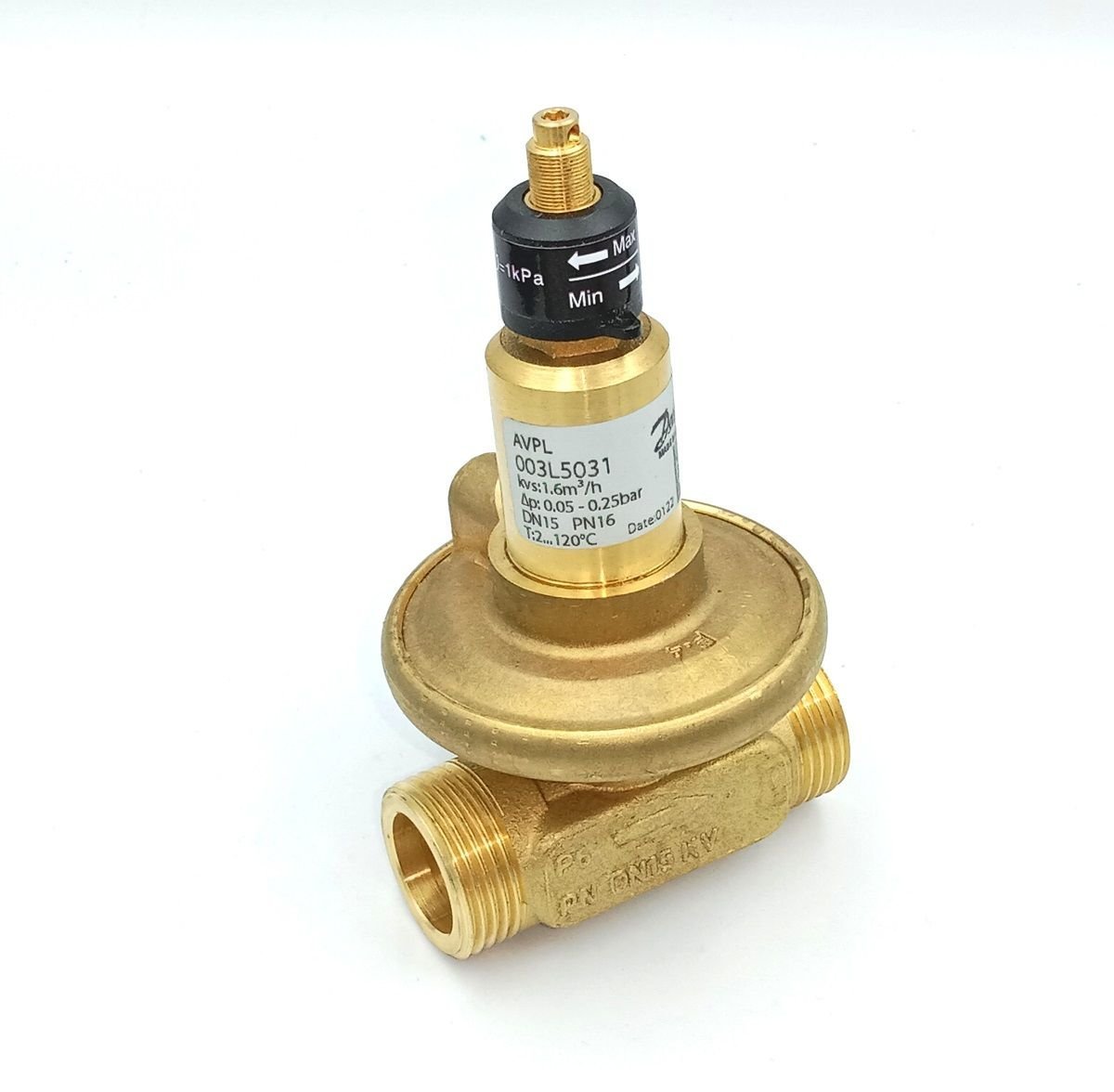

AVPL Fark Basınç Vanası 003L5031

AVPL is used to regulate central heating systems or similar systems in such a way that a constant pressure difference is maintained even if the pressure drop in the system, kvs and/or the current pressure dP values change. The AVPL regulator allows you to set the pressure difference in the range of 5kPa to 25kPa (0.05 bar to 0.25 bar). The factory setting of the regulator is 5kPa.

Product code 003L5031

DN 15

Kvs 1.6

PN 16

Factor Circulating water

Alternative factor 1 Glycol water (max. 30%)

Min. medium temperature 2

Max medium temperature 120

Connection External thread

Connection size G 3/4 A

Installation location Return

Material Brass

Function Differential pressure regulator

Setting type Variable

Min. Dp setting 0.05

Max Dp setting 0.25

Max. XP 4.5

EAN 5702421521595

Note: Capillary tube included.
